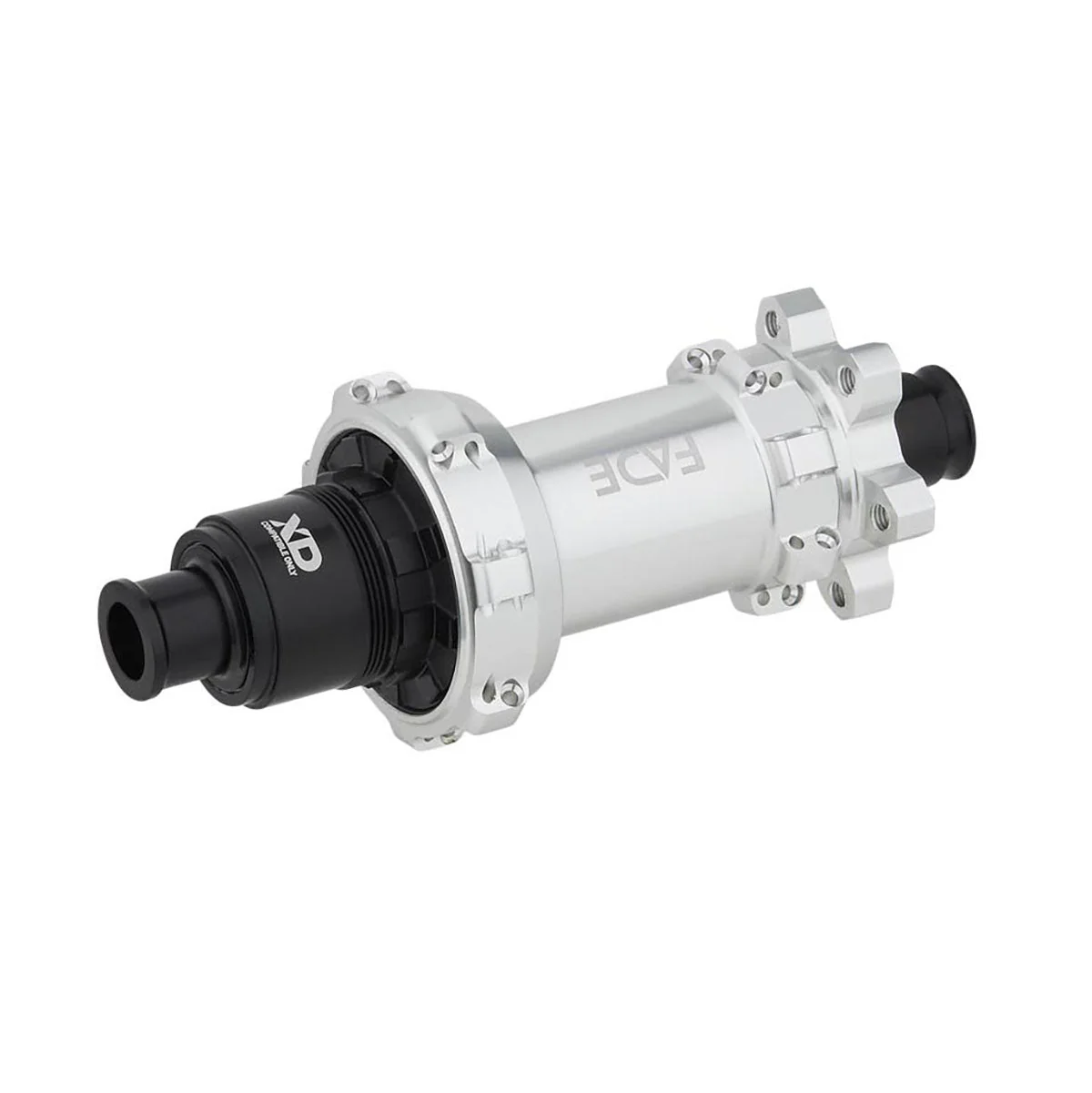

NEWMEN - Hub (Rear) - Fade MTB - [D]

Overview

Our new hub generation.The most notable difference compared to the previous Evolution hubs is the newly designed and large dimensioned FADE driver. Inside the hub now are three pawls instead of the previous star ratchets. The develpoment targets of our new FADE driver were:- maintaining the same durability- reduction of the freewheel noise- further increasing reliability. The large diameter of the FADE driver reduces the forces which occur inside the freewheel.

A particularly short and wide pawl design distributes the forces evenly onto a large area which helps with homogenous force transmission inside the hub. The ratchet ring has a special shape which significantly reduces noise. We intentionally went for 36 engagement points since more engagement points reduce hub durability noticeably on our testing rigs. Also we experienced more pedal feedback when experimenting with higher engagement hubs on full suspension bikes.

As with the predecessor hubs, the body has more material around the critical areas compared to competitor hubs which results in increased durability and safety. We are convinced enough by the durability of these hubs to allow them to be used with any E-bike on the market. Of course all rear hubs are available with all three driver options (Microspline, XD, HG).

36 teeth / 3 pawls

Specifications

Driver Spec	Microspline / Shimano / XD
Max. System Weight	180 kg
Material	Aluminum
Brake Disc	Centerlock / 6-Bolt
Spoke Hole Number	28h
Spoke Type	Straightpull
Axle Width	12x148 / 12x157
Intended Use	MTB
Weight	~250g
