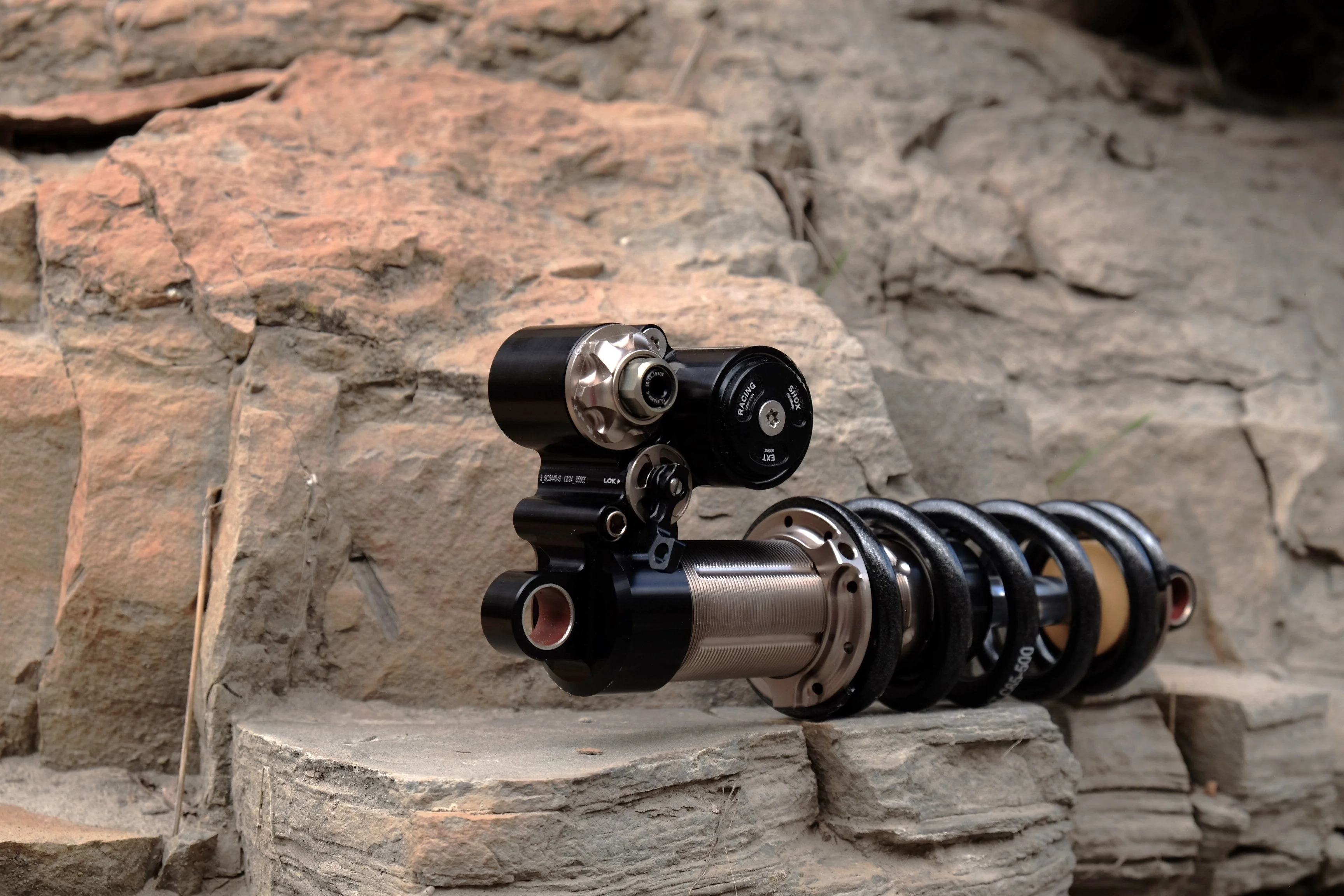

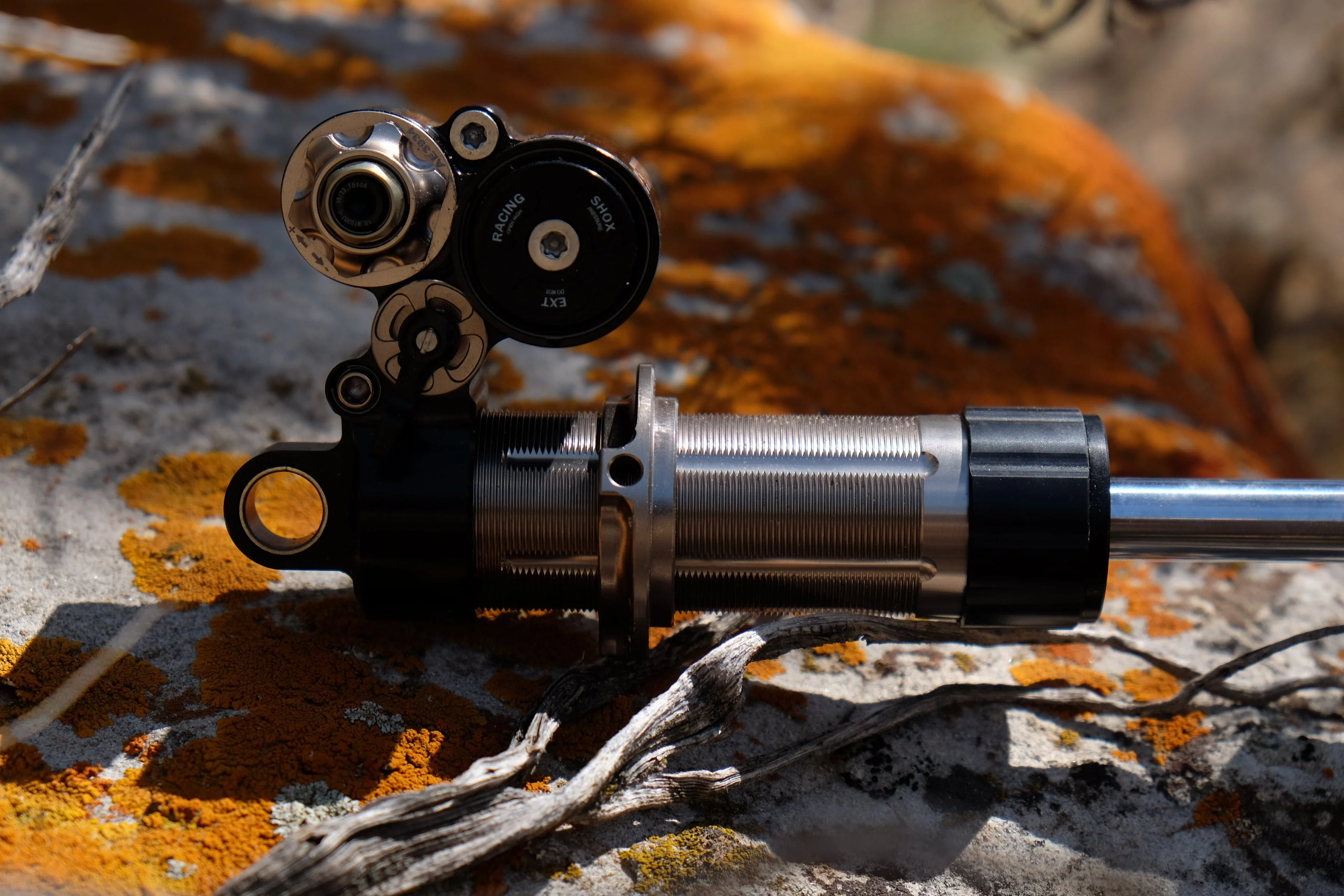

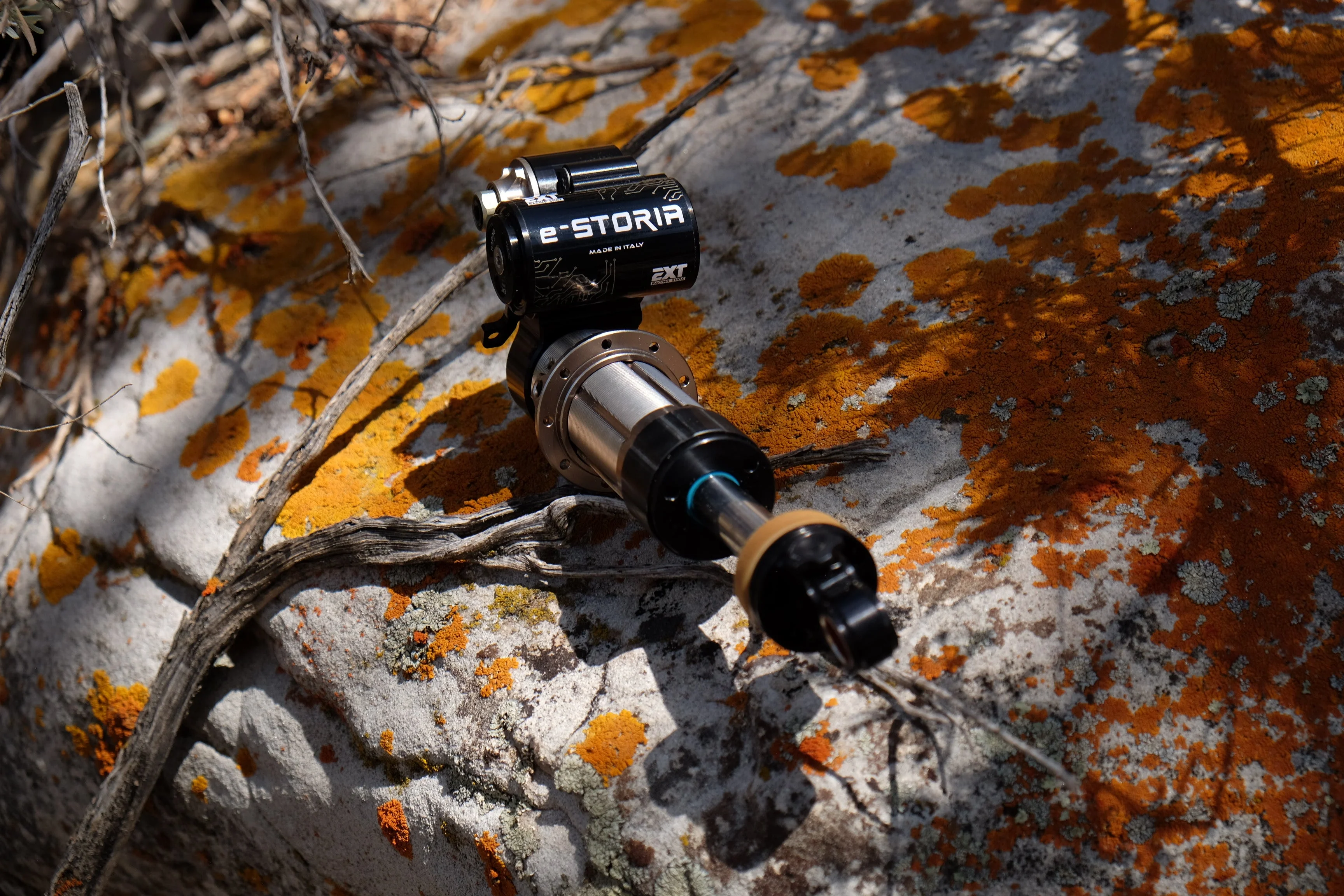

EXT e-Storia
The e-Storia includes the following features:
- Integrated reservoir head design to increase eyelet/trunnion mount fitment
- Stronger body construction
- Chromoly shaft with low friction coating
- Reservoir with large volume bladder design
- Dedicated spring platform to accommodate stiffer springs
- Internal negative spring to avoid harsh top-out and improve bike platform stability
- Lok 2.0
- New rebound adjustment to increase tuning range
- New compression valve design to increase adjustability range and provide more supple low speed characteristics.
- Low hysteresis to improve dynamic response
- Completely independent compression/rebound adjustment
- New check valve with low inertia to control damping even at really high frequency
- New externally adjustable HBC and more efficient design to increase bottom out protection
- New seal design to reduce friction
- New main piston design with high flow to improve sensitivity and tunability
- All valves with turbulent flow to assure consistent damping with different temperature andĀ under extreme use/conditions
- A new high viscosity index oil for longer consistent riding in all different situations and seasons
- Springs available up to 800lb
- Weight 460g (Metric 210x55 without sping)
- Price is for damper only.Ā
Ā
NOTE: Orders Requiring an HD spring (650lb+) will ship with one spring only. However, an additional HD spring may be purchased for $50.
AFMLOW RIDERS: Due to the tight frame clearance on Amflow frames, we are recommending a maximum rider weight of 230lbs.
Ā To ensure frame clearance, riders over a 170lb will most likely require and be shipped with a C55 spring-size. C55 spring rates max out at 650lbs rate, which calculates to a 230lb rider weight. If you are over the recommended maximum rider weight, your spring may touch your frame under full compression.
Original: $1,200.00
-65%$1,200.00
$420.00Product Information
